12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station

Product Categories
Shenzhen Rogin Electronics Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

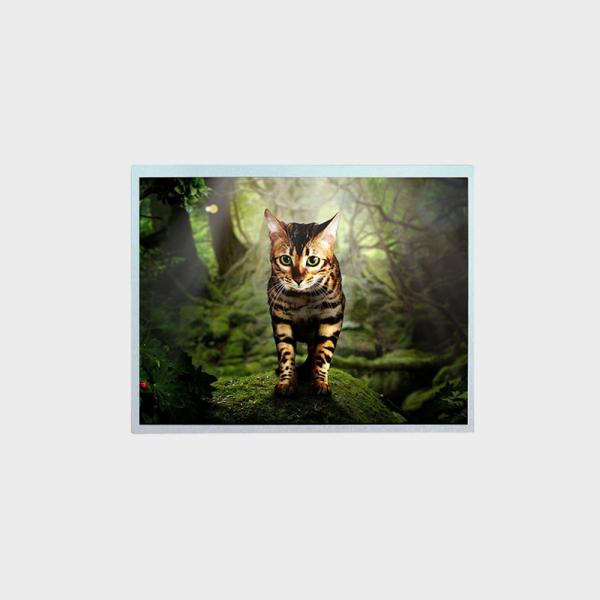

12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station

  • 1
  • 2
  • 3

Brand Name : ROGIN

Model Number : LCMA-RX0121GR01-C100

Place of Origin : Shenzhen

MOQ : 5

Price : Price is negotiable.

Payment Terms : T/T, L/C

Supply Ability : Spot adequacy

Delivery Time : 6-8 weeks

Packaging Details : Cartons or wooden cases

Panel Size : 12.1"

Resolution : 1024*768

Brightness : 1000 (Typ.)

Aspect Ratio : 4:3

Active Area : 245.76*184.32mm (A.A)

Outline Dimension : 260.5*204*8.46mm

Contact Now

12.1 inch High Brirghtness LCD Display 1024*768 LVDS 1000nits

Product Advantage ►

1. Brightness customization 700-5000cd/m2.
2.Outdoor sunlight readable.
3. Low power consumption.
4. High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6.Aluminium backlight structure with good heat dissipation.
7. Wide temperature range up to -30°C-80°C.
8. High shock resistance and high stability.

Product Application ►

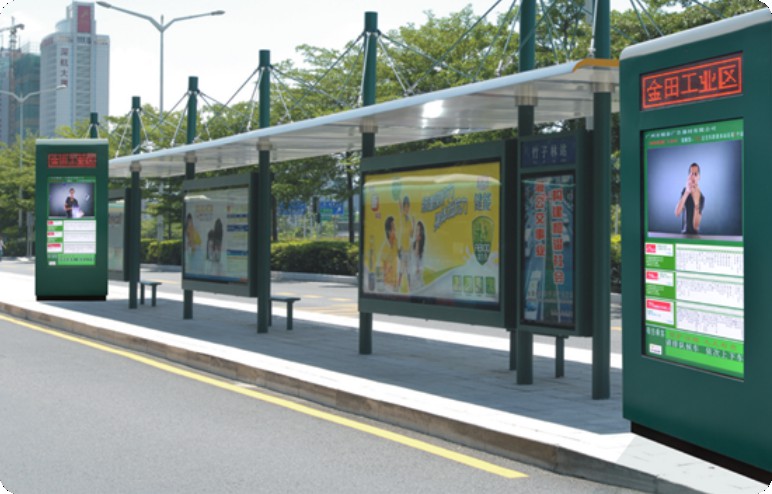

1. Bus Station Signage Board.

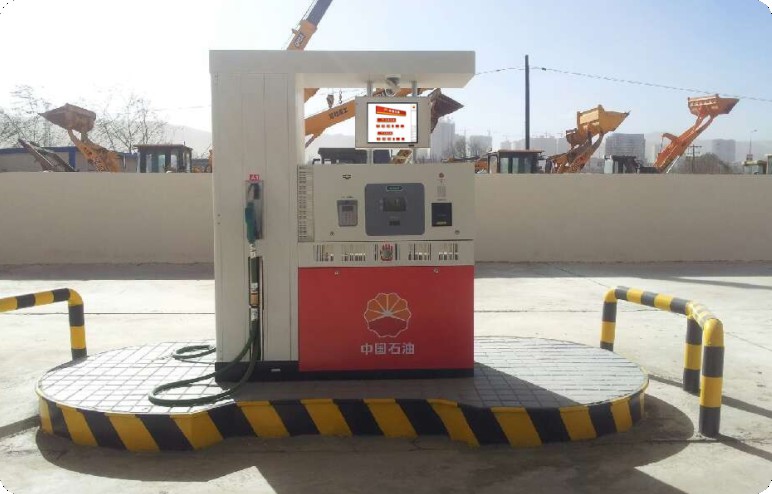

2.Intelligent Charging Pile.

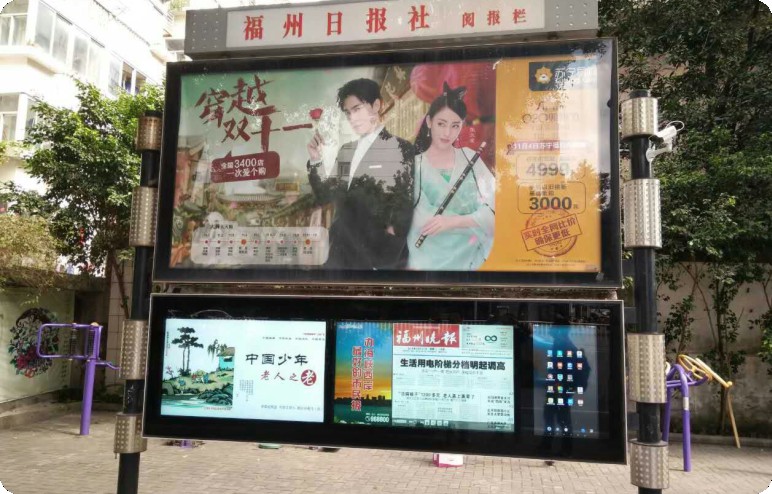

3.Outdoor Electronic News Reading Board.
4.Intelligent Express Cabinet.
5.Vending Machine.

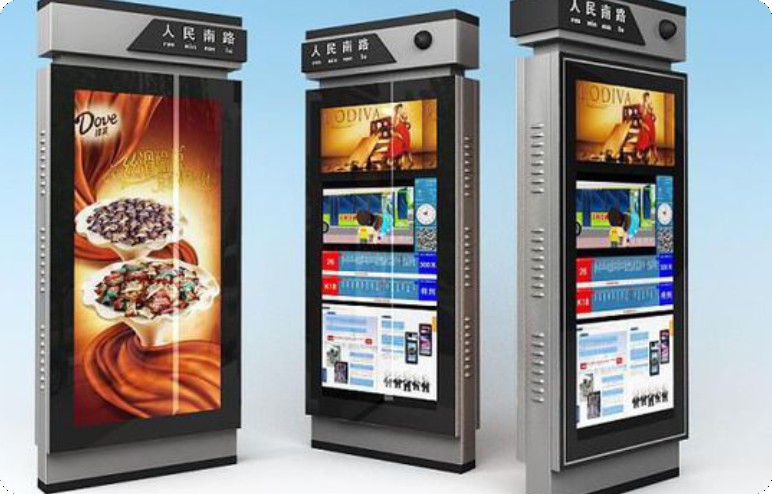

6.Commercial Advertising Machine.
7.Attractions Information Inquiry Machine.
8.Community Information Board.
12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station 12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station 12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station 12.1 Inch High Brightness LCD Display 1024*768 LVDS 1000 Nits For Bus Station

Specifications ►

LCMA-RX0121GI01-C150

Brand Rogin
Series High Brightness LCD Display
Panel Size(inch)
 12.1
Model
 LCMA-RX0121GR01-C100
Brightness
 1000
Power Consumption (W)
 12
Resolution
 1024*768
Active Area
 245.76*184.32
Overall Size
 260.5*204*8.46
Viewing Angle
 88/88/88/88
Interface Definition
 LVDS (1 ch, 6/8-bit)
Backlight Type WLED
Contrast Ratio
 1000:1
Aspect Ratio
 4:3
Touch Panel Without
Operating Temperature
 -30~80℃

► Product catalog of high brightness LCD display.pdf...
